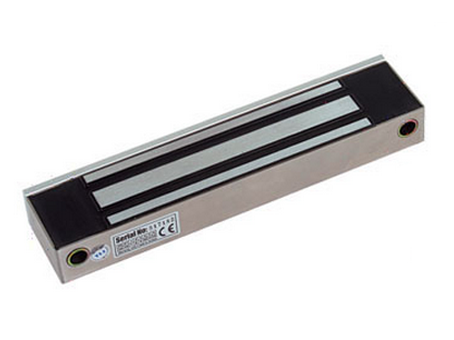

EM Lock- 800LBS Waterproof

Single Door Magnetic Lock With Waterproof (800Lbs)

Features

  • Collinear Load Test 350Kg, 800pounds
  • Dual Voltage 12 or 24 VDC (optional)
  • The Standard Voltage is 12VDC when Finished
  • MOV Provides Reverse Current Protection
  • Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
  • The Shell Finished with Stainless Steel, more Strongly and Durably
  • 100% waterproof, All the Part Pressurize in resin.
  • Special Waterproof, Indoor and Outdoor can be install.
  • Design with no Mechanical Bolt, Depending on the powerful Magnetic force
  • Increase the holding Force, Dual Insulative Housing
  • CE Certificate by European Union, MA Certificate by China Public Security office

Parameters

  • Lock Size: 227.6Lx52.6Wx28.3H(mm)
  • Armature plate: 190Lx45Wx11H(mm)
  • Holding Force: 350kg(800Lbs)
  • Voltage: 12/24VDC+10%
  • Current Draw: 12V/480mA 24V/240mA
  • Optional Bracket: AB-350UL AB-350L AB-350ZL
  • Suitable for: Wooden door, Glass door, Metal door, Fireproof door
  • Signal Output: Need to order YM-350W-S
  • Surface Temp: ≤+20°C
  • Operating Temp: 10~+55°C(14-131F)
  • Suitable Humidity: 0~90%(non-condensing)
  • Finishes for Shell: Anodized aluminium
  • Finishes for Magnetic: Zinc
  • Finishes for Armature: Zinc
  • Weight: 2.5kg
